Aldex MP Series
C-800H MP SC Macroporous Strong Acid Resin
Aldex C-800H MP SC is a premium grade, high capacity, strongly acidic macroporous cation resin in the sodium or hydrogen form, used in demineralization systems and condensate polishers. Aldex C-800H MP SC combines high capacity characteristics with the increased thermal and chemical stability versus gellular resins. Aldex C-800H MP SC is more highly cross-linked than our standard non-solvent resins Aldex C-800H and Aldex C-800x10H.
Download Aldex C-800H MP SC Technical Data Sheet (PDF)
Physical Chemical Properties
| Resin Composition: | Macroporous styrene divinylbenzene |
| Functional Group: | Sulfonic Acid |
| Ionic Form as Shipped: | Hydrogen or Sodium |
| Physical Form: | Tan, spherical beads |
| Total Capacity Hydrogen Form: Sodium Form: | >1.6 meq/mL >1.8 meq/mL |
| Swelling (Sodium to Hydrogen) | 2 to 4% |
| Moisture Content Hydrogen Form: Sodium Form: | 50 to 60% 45 to 55% |
| Shipping Weight: Hydrogen Form: Sodium Form: | 48 lbs per cubic foot 50 lbs per cubic foot |
| Particle Size: | 16 to 50 mesh |
| Fines Content (<50 mesh): | 1% maximum |
| Sphericity: | 95% minimum |
| Uniformity Coefficient | 1.6 approximately |
Recommended Operating Conditions
| Maximum Temperature: | 280°F (Hydrogen Form) 300°F (Sodium Form) |
| Bed Depth: | Minimum 24” |
| Backwash Flow Rate: | 25 to 50% bed expansion |
| Pressure Loss: | 20 psi maximum |
| Influent pH: | 0 to 14 |
| Regenerant Strength: Hydrogen cycle Hydrogen cycle Salt cycle | 5 to 10% HCl 1 to 8% H2SO4 10 to 15% NaCl |
| Regenerant Dosage Level: | 4 to 15 lbs per cubic foot |
| Regenerant Flow Rate: | 0.5 to 1.5 US GPM per cubic foot |
| Regenerant Contact Time: | >20 minutes |
| Displacement Flow Rate: | Same as dilution water |
| Displacement Volume: | 10 to 15 gallons per cubic foot |
| Rinse Flow Rate: | 1 to 10 US GPM per cubic foot |
| Rinse Volume: | 35 to 60 gallons per cubic foot |
| Service Flow Rate: | 1 to 10 US GPM per cubic foot |
C-800H MP SC Features
Very low color, taste or odor
Aldex C-800H MP SC meets the requirements for paragraph 173.25 of the Food Additive Regulation of the U.S. Food and Drug Administration.
Long Life
Strong and durable beads ensure long service life.
Superior Physical Stability
Combined 98% sphericity with high crush strengths and uniform particle size provides greater resistance to bead breakage due to mechanical, thermal or osmotic stresses.
Reliability
Aldex Chemical has over 40 years of field usage by thousands of customers demonstrate the reliability of Aldex ion exchange resins, zeolites and other water treatment media.
Safety Information
A material safety data sheet is available for Aldex C-800H MP. Copies can be obtained from Aldex Chemical Co., LTD. Aldex C-800H MP is not a hazardous product and is not WHMIS controlled.
Caution: Acidic and basic regenerant solutions are corrosive and should be handled in a manner that will prevent eye and skin contact. Before using strong oxidizing agents in contact with ion exchange resin, consult sources knowledgeable in the handling of these materials.
Pressure Drop

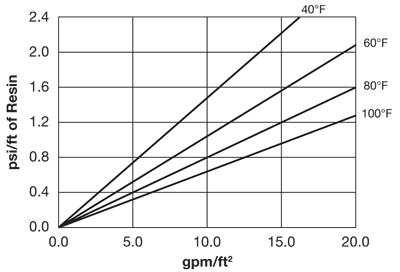

The graph below (Fig. 1) shows the expected pressure loss per foot of bed depth as a function of flow rate at various temperatures.
Fig. 1 Pressure Drop vs Flow Rate at various degrees Fahrenheit (F°)
Backwash Characteristics
Aldex C-800H MP SC should be backwashed for at least 20 minutes at a flow rate sufficient to cause 25% to 50% expansion of the resin bed. This will remove any foreign matter and reclassify the bed.

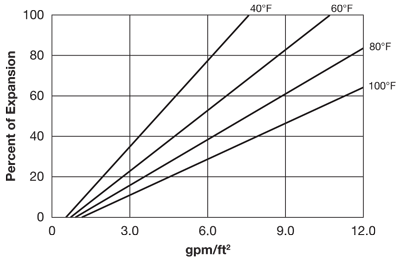

Fig. 2 Hydraulic expansion data parameter flow rate GPM / FT2
Application
Softening

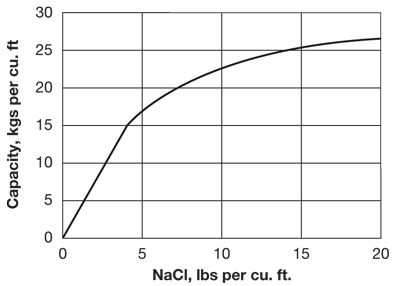

Fig. 3 shows operating capacity of Aldex C-800H MP SC for acid removal at various regeneration levels when treating an influent. Data is based on a concentration of 2:1 Ca:Mg ratio at 500 ppm as calcium carbonate, a .02% salt hardness, and 10% brine concentration applied co-currently over 30 minutes. No engineering downgrade applied.
Fig. 3 Softening capacity
Demineralization
Aldex SB-1 MP SC is highly recommended for use in multiple and mixed bed demineralizations, wherever complete ion removal and physical and osmotic stability are required.
The high total capacity of Aldex C-800H MP SC makes it ideal for applications such as precious metal recovery, rad-water disposal and purification of toxic waste streams. The lower porosity also provides an increased resistance to osmotic and physical shock compared with more porous products such as Aldex C-800H MP SC.
Type 1 anion exchangers have greater thermal and oxidation resistance than other types of strong base resins and can be operated at higher temperatures to ensure low silica leakages. The lower porosity, high total capacity and Type 1 functionality of Aldex C-800H MP SC make it the resin of choice where the water temperature is in excess of 85°F or where the combination of carbon dioxide plus silica exceed 40% of the total anion and where chlorides and organics represent only a small portion of the ions to be removed on a regeneration basis. At lower regeneration levels or where the removal and elution of organics is of concern Aldex C-800H MP should be considered.
Aldex C-800H MP SC and Aldex C-800H MP are quite similar; the major difference between the two is the degree of porosity. The choice between them is not always clear cut. We suggest you consult our technical staff for specific recommendations.

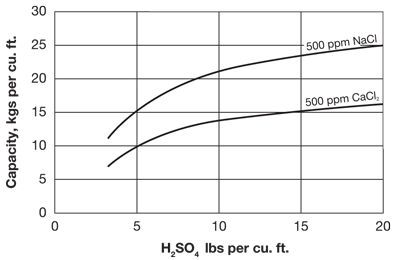

Fig 4. demonstrates the operating capacity of Aldex C-800H MP SC in the Hydrogen form. Data is based on 500 ppm as calcium carbonate with zero alkalinity, bed depth of 36”, flow rate of 2 to 4 gpm per cubic feet and a greater than 30 minutes chemical injection time. If the calcium concentration exceeds 20% of total cations, then the sulfuric acid concentrations must be decreased in stages. No engineering downgrade applied.
Fig. 4 Operating Capacity
Radwaste
Aldex C-800H MP SC is ideally suited for radwaste applications. Due to its high cross-linked media, it has enhanced resistance to chemical damage caused by ionizing radiation. It is able to maintain its structural integrity up to 1 x 109 rads exposure.
